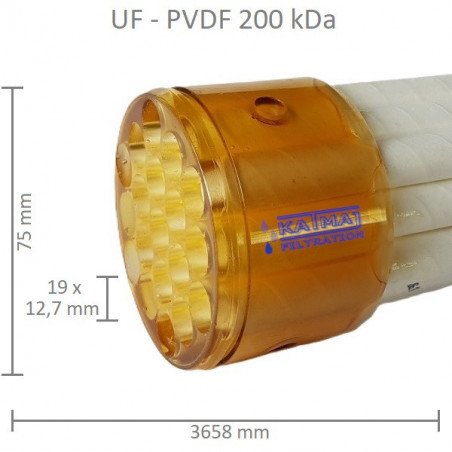

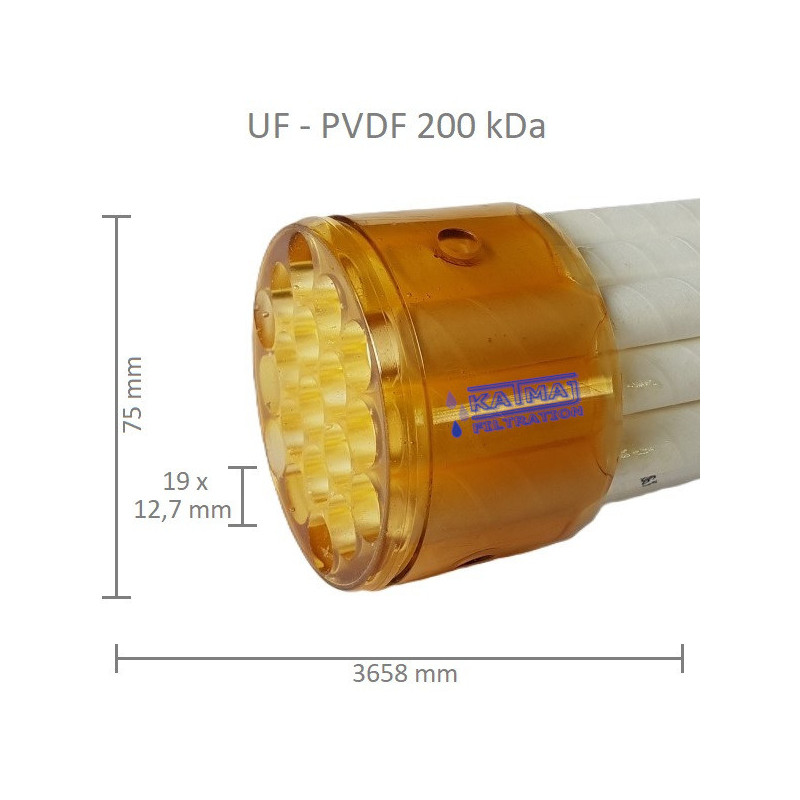

UF19 Membrane Filter PVDF 200kDa, 19x12,5mm, 3658mm
€0.00
Tax excluded
UF19 Membrane element - fits in KATMAJ Filtration UF19 housing or other housings with similar inner dimensions
Membrane: UF PVDF 200 kDa (membrane layer inside the support tube - "in-out filtration")
Channels: 19 membranes tubes with 12,5mm ID each
Support material: PET tubes, PSU head shell with epoxy resin (FDA grade)
Core Size OD: 75mm with 3 screw holes on each end
Lenght: 3658 mm
⇓ Please ask for current prices and delivery times!
UF19 Membrane element - fits in KATMAJ UF19 housing system or other housings with same dimensions (OD 75mm, 3 screws, 3658mm lenght)
Data sheet
- Filtration Spectrum
- UF - Ultrafiltration
- Pore Size
- 200 kDa
- Membrane Material
- PVDF
- Support Material
- PET - Polyethylene terephthalate
- Channel ID in Millimeter
- 12,5 (≈½")
- Channels per Element
- 19
- Lenght in Millimeter
- 3658
- Housing Design
- UF19 - 3" tri-clamp
- Feed Flow @ 3m/s
- 25 m³/h
