UF37 Core PVDF 200kDa, 37x12,5mm, 3658mm
€0.00
Tax excluded
Delivered within 3 - 4 weeks

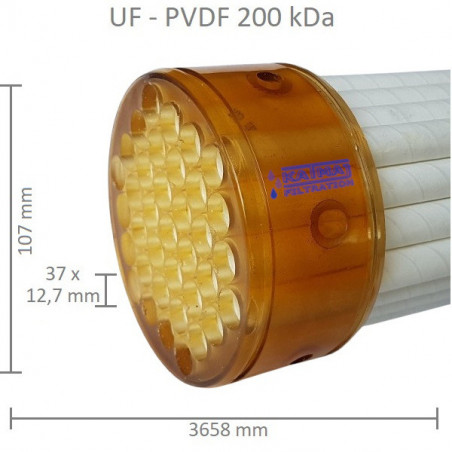

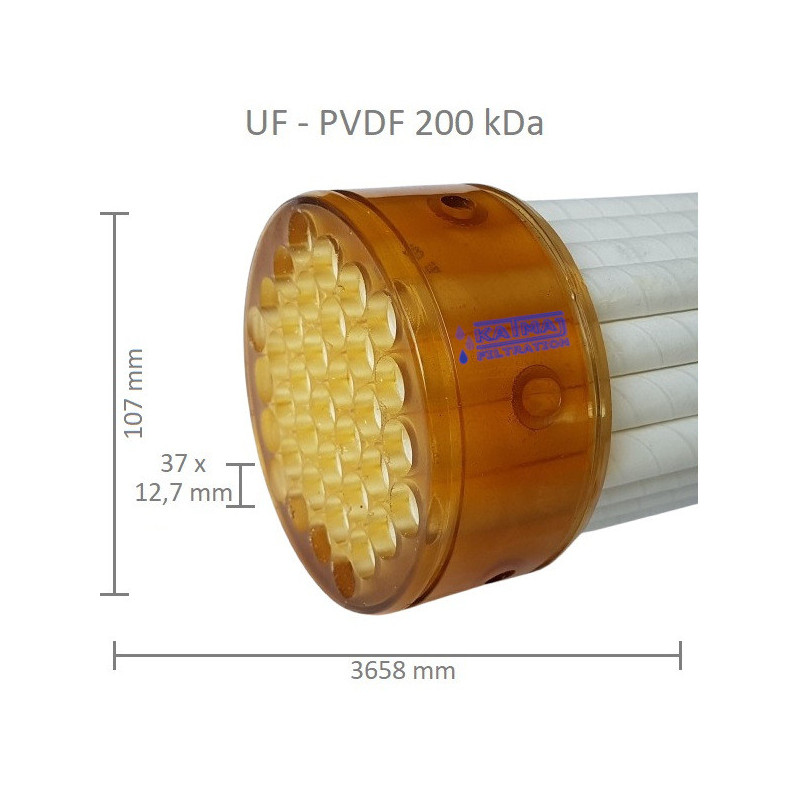

UF37 Membrane element - fits in KATMAJ Filtration UF37 housing or other housings with similar inner dimensions
Membrane: UF PVDF 200 kDa (membrane layer inside the support tube - "in-out filtration")
Channels: 37 membranes tubes with 12,5mm ID each
Support material: PET tubes, PSU head shell with epoxy resin (FDA grade)
Core Size OD: 107mm with 6 screw holes on each end
Lenght: 3658 mm
UF37 Membrane element - fits in KATMAJ UF37 housing system or other housings with same dimensions (OD 107mm, 6 screws, 3658mm lenght)
Data sheet
- Filtration Spectrum
- UF - Ultrafiltration
- Pore Size
- 200 kDa
- Membrane Material
- PVDF
- Support Material
- PET - Polyethylene terephthalate
- Channel ID in Millimeter
- 12,5 (≈½")
- Channels per Element
- 37
- Lenght in Millimeter
- 3658
- Housing Design
- UF37 - 4" tri-clamp
- Feed Flow @ 3m/s
- 49 m³/h
Comments (0)
No customer reviews for the moment.
UF37 Membrane element - fits in KATMAJ Filtration UF37 housing or other housings with similar inner dimensions
Membrane: UF PVDF 200 kDa (membrane layer inside the support tube - "in-out filtration")
Channels: 37 membranes tubes with 12,5mm ID each
Support material: PET tubes, PSU head shell with epoxy resin (FDA grade)
Core Size OD: 107mm with 6 screw holes on each end
Lenght: 3658 mm
