- New

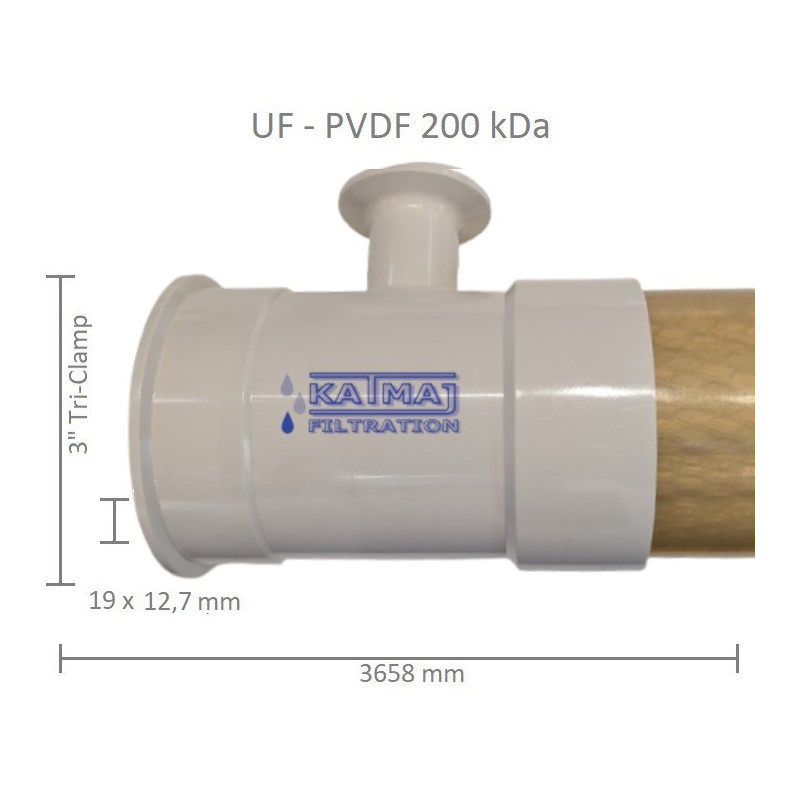

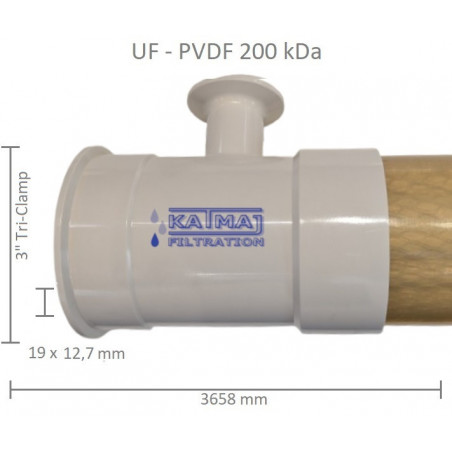

UF19PSU Module PVDF 200kDa, 19x12,5mm, 3658mm
€0.00
Tax excluded
Delivered within 3 - 4 weeks
UF19 PSU Membrane module
Membrane: UF PVDF 200 kDa (membrane layer inside the support tube - "in-out filtration")
Channels: 19 membranes tubes with 12,5mm ID each
Support material: PSU housing with epoxy resin (FDA grade)
Feed Connection: 3" tri-clamp each end
Lenght: 3658 mm
UF19 PSU Membrane module - (3" tri-clamp, 3658mm lenght)
Data sheet
- Filtration Spectrum
- UF - Ultrafiltration
- Pore Size
- 200 kDa
- Membrane Material
- PVDF
- Support Material
- PET - Polyethylene terephthalate
- Channel ID in Millimeter
- 12,5 (≈½")
- Channels per Element
- 19
- Lenght in Millimeter
- 3658
- Housing Design
- UF19 - 3" tri-clamp
- Housing Material
- PSU - Polysulfone
- Feed Flow @ 3m/s
- 25 m³/h
Comments (0)
No customer reviews for the moment.
UF19 PSU Membrane module
Membrane: UF PVDF 200 kDa (membrane layer inside the support tube - "in-out filtration")
Channels: 19 membranes tubes with 12,5mm ID each
Support material: PSU housing with epoxy resin (FDA grade)
Feed Connection: 3" tri-clamp each end
Lenght: 3658 mm
