UF1 Module PVDF 150kDa, 1x25,4mm, 2865mm
€0.00
Tax excluded
Delivery within 2 - 4 weeks

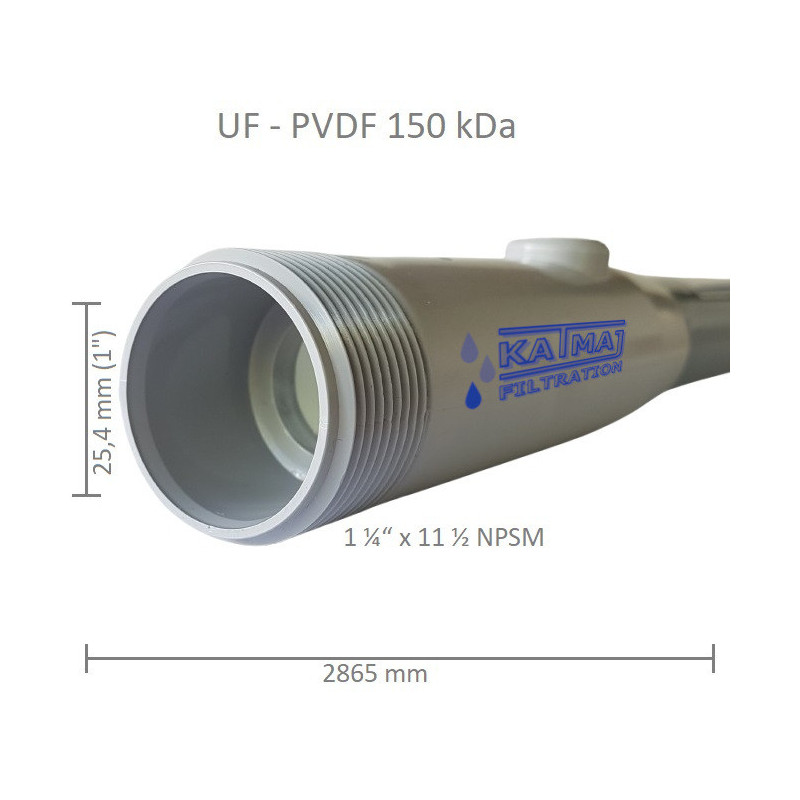

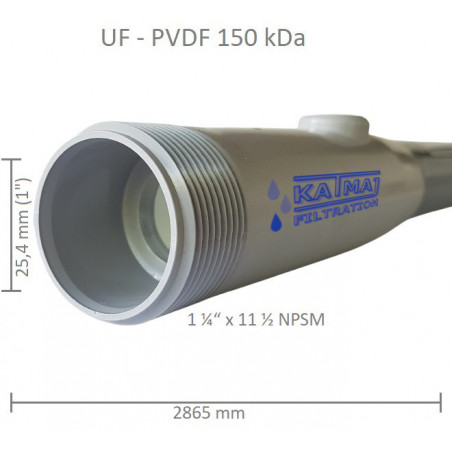

UF1 Membrane module - CPVC housing with one 1" membrane tube
Membrane: UF PVDF 150 kDa (membrane layer inside the support tube structure - "in-out filtration")
Channels: 1 membrane tube with 24,5 mm ID
Support material: PET tube, PSU head shell with epoxy resin (FDA grade)
Module Size/OD: 1 ¼"
Lenght: 2865 mm
UF1 Membrane module - CPVC housing with one 1" membrane tube
Data sheet
- Filtration Spectrum
- UF - Ultrafiltration
- Pore Size
- 150 kDa
- Membrane Material
- PVDF
- Channel ID in Millimeter
- 25,4 (≈1")
- Channels per Element
- 1
- Lenght in Millimeter
- 2865
- Housing Design
- UF1 - 1¼"x11½" NPSM
- Housing Material
- CPVC
- Feed Connection
- 1¼“ x 11½ NPSM
- Permeate Connection
- ¼“ NPT
- Feed Flow @ 3m/s
- 5.4 m³/h
