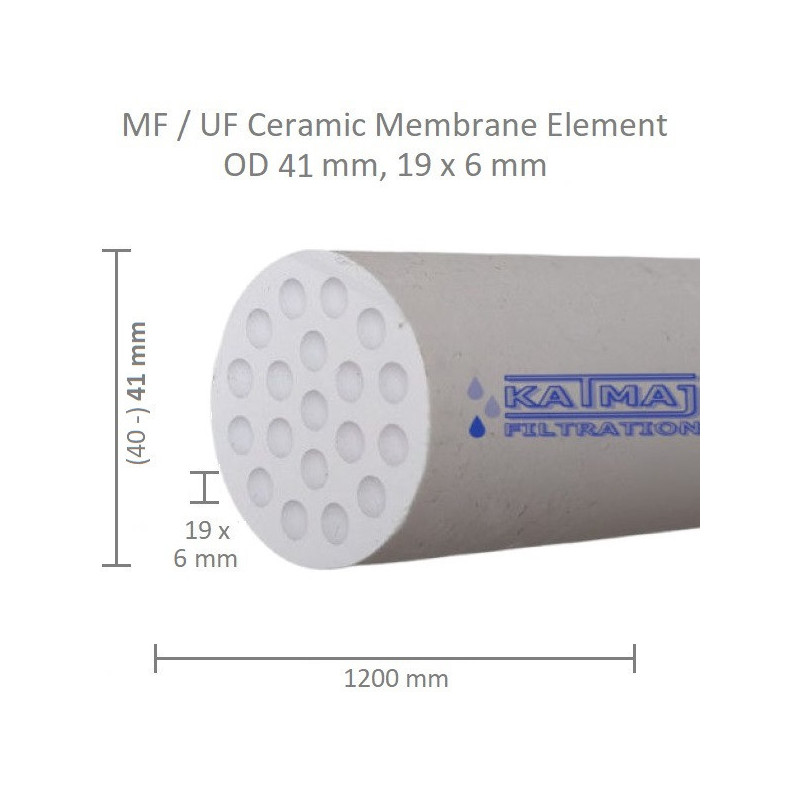

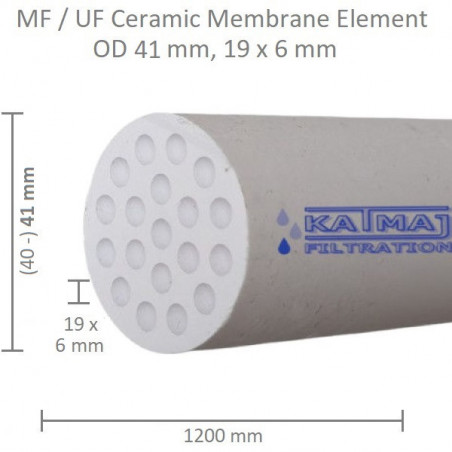

Ceramic Membrane OD 41mm, 19x5mm, 1200mm
Ceramic membrane element with an outer diameter of 41 mm (+/- 1 mm) and 19 channels with an inner diameter of 6 mm.
The membrane element lengths: 1200 mm.
The ends can be ground down to 40 mm, if necessary, to accommodate special seals.
The base element material is α-Al2O3 – the membrane layers inside the channels are TiO2 / ZrO2 / Al2O3 (combinations of these layers are also possible depending on the pore size).
Standard end sealing: PTFE (others available upon request)
The membrane element is steam sterilizable at temperatures ≥ 121°C / approx. 250°F.
pH stability: 0–14
⇓ Please ask for current prices and delivery times!
Ceramic membrane element with an OD of 41 mm (+/- 1 mm) and 19 channels with ID of 6 mm, standard length is 1200mm.
Ceramic membrane filter elements TAMI Inside Ceram Cerinox from Atech Inovation GmbH 1/6 1/16 19/3.3 61/2 19/4 37/3 19/6 37/3.8 61/2.5 91/2.4 208/1.5 19/8 37/5.7 61/4 85/3.3 211/2 also Rauscher Inopor or Alsys Orelis Kleansep as well as Novasep Kerasep carbosep AX AW BX BW BT UFP in but Pall Membralox IC EP3730 EP1940 EP3740 EP1960 length 1178 or 1200 or 1500 mm for Microfiltration and Ultrafiltration and Nanofiltration and separation of wine juice fluids Ceramem and GEA Membraflow 1020 mm E076-R-1020 E076-R-1200 E0193-R-1020 E193-R-1200 E372-R-1020 E372-R-1200 E194-R-1020 E194-R-1200 E196-R-1020 E196-R-1200 E374-R-1020 E374-R-1200 E613-R-1020 E613-R-1200 E912-R-1020 E912-R-1200 E277-R-1020 E277-R-1200 E208-R-1020 E208-R-1200 E198-R-1020 E198-R-1200 E076-R-1020 E076-R-1200 E614-R-1020 E614-R-1200 E376-R-1020 E376-R-1200
Data sheet
- Membrane Material
- Al2O3 / ZrO2 / TiO2
- Support Material
- Al2O3 - Aluminium Oxide
- Channels per Element
- 19
- Channel ID in Millimeter
- 6
- Membrane Area in m²
- 0,43
- Length in Millimeter
- 1200
- Element OD in Millimeter
- 41
- Feed Flow @ 3m/s
- 5,8 m³/h
- max Working Pressure
- 10 bar
