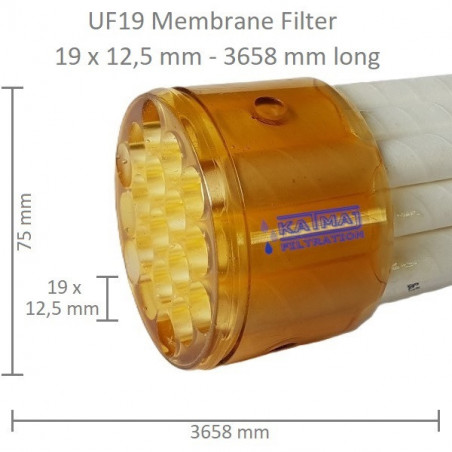

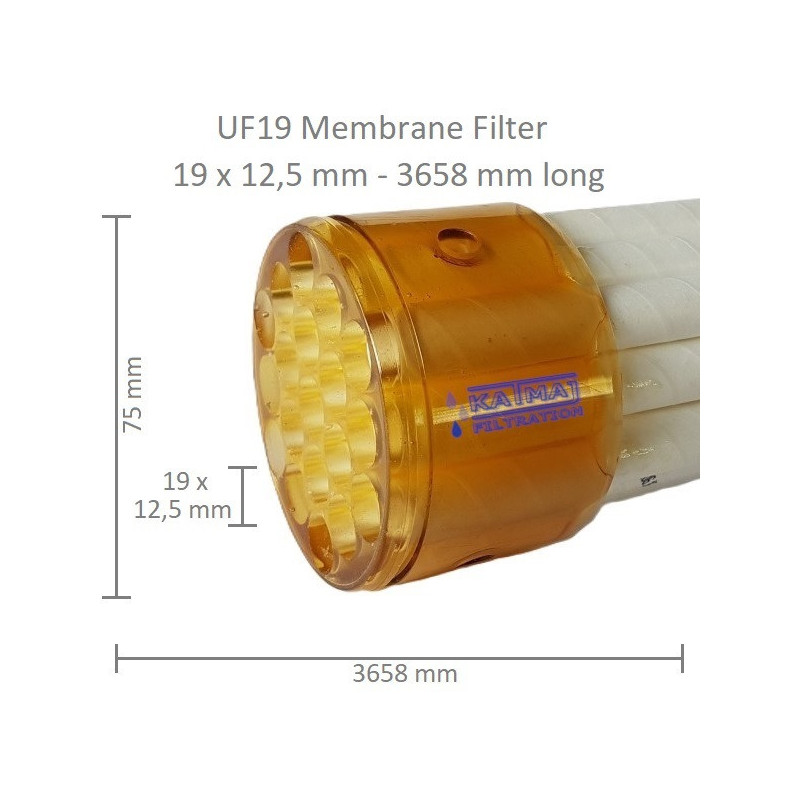

UF19 Membrane Filter PVDF, 19x12,5mm, 3658mm
UF19 Membrane element - fits in KATMAJ Filtration UF19 housing or other housings with similar inner dimensions
Membrane: PVDF 20 kDa / 100 kDa / 200 kDa / 450 kDa / 200 nm (0,2µm)
(membrane layer inside the support tube - "in-out filtration")
Channels: 19 membranes tubes with 12,5mm ID each
Support material: PET tubes, PSU head shell with epoxy resin (FDA grade)
Core Size OD: 75mm with 3 screw holes on each end
Length: 3658 mm
⇓ Please ask for current prices and delivery times!
UF19 Membrane element - fits in KATMAJ UF19 housing system or other housings with same dimensions (OD 75mm, 3 screws, 3658mm length)
FPA20/10/S PCI Membranes membrane filter FPA10/10/S core A19, FPA20/12/S and FPA10/12/S also FPA03/12/S available. Bucher Unipektin apple juice clarification membrane filters also from Koch Kovalus Membrane Systems 0715210 and 0715270 like Koch Super-Cor XL HFM-180 HFM-513 part no 0715010 and 0715070, but also C65-10 Memos Membrane Module Systems Memcross C65 VFU-100 VFU-250 C80 C100 as well as CUT Membrane GmbH 1910 1912 T-CUT Core UF 200-125 PVDF 75-3658 or T-CUT Core UF 200-125 PVDF 75-3050 article no 760815 760814 760816 for juice clarification, low price with prize offer fast delivery cause on stock
Data sheet
- Filtration Spectrum
- UF - Ultrafiltration
- Membrane Material
- PVDF
- Support Material
- PET - Polyethylene terephthalate
- Channels per Element
- 19
- Channel ID in Millimeter
- 12,5 (≈½")
- Membrane Area in m²
- 2,6
- Length in Millimeter
- 3658
- Housing Design
- UF19 - 3" tri-clamp
- Element OD in Millimeter
- 75
- Feed Flow @ 3m/s
- 25 m³/h
- max Working Pressure
- 7 bar
