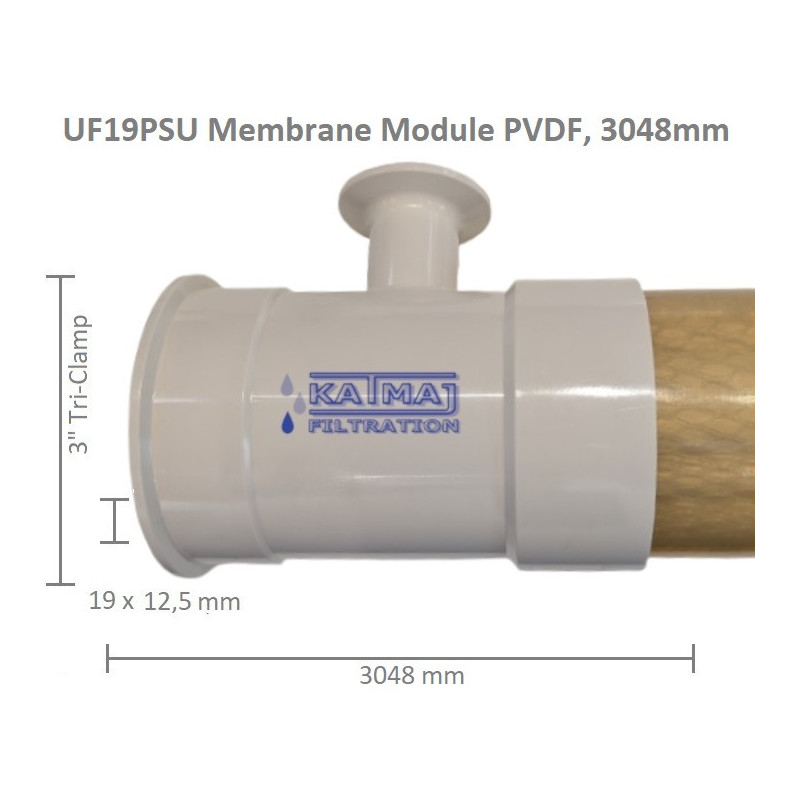

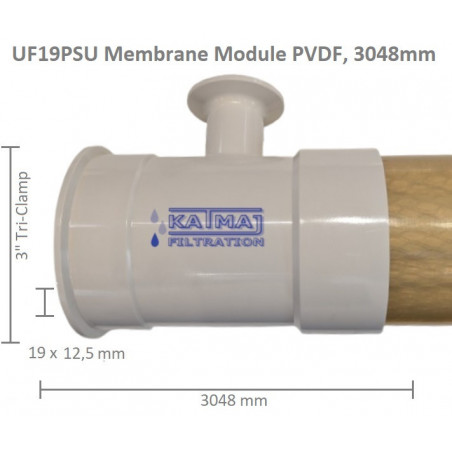

UF19PSU Membrane Module PVDF, 19x12,5mm, 3048mm
UF19 PSU Membrane module
Membrane: PVDF (membrane layer inside the support tube - "in-out filtration")
Channels: 19 membranes tubes with 12,5mm ID each
Support material: PSU housing with epoxy resin (FDA grade)
Feed Connection: 3" tri-clamp each end
Lenght: 3048 mm
⇓ Please ask for current prices and delivery times!
UF19 PSU Membrane module - (3" tri-clamp, 3048mm lenght)
FPA20/10/S, FPA10/10/S PCI Membranes membrane filter core A19, FPA20/12/S and FPA10/12/S Bucher Unipektin apple juice clarification membrane filters also from Koch Kovalus Membrane Systems 0715210 and 0715270 like Koch Super-Cor XL HFM-180 HFM-513 part no 0715010 and 0715070 also C65-10 Memos Membrane Module Systems Memcross C65 VFU-100 VFU-250 C80 C100 CUT Membrane GmbH 1910 1912 T-CUT Core UF 200-125 PVDF 75-3658 or T-CUT Core UF 200-125 PVDF 75-3050 article no 760815 760814 760816
Data sheet
- Membrane Material
- PVDF
- Support Material
- PET - Polyethylene terephthalate
- Channels per Element
- 19
- Channel ID in Millimeter
- 12,5 (≈½")
- Membrane Area in m²
- 2,2
- Length in Millimeter
- 3048
- Housing Design
- UF19 - 3" tri-clamp
- Housing Material
- PSU - Polysulfone
- Element OD in Millimeter
- 79
- Feed Connection
- 3" Tri-Clamp
- Permeate Connection
- 1" Tri-Clamp
- Feed Flow @ 3m/s
- 25 m³/h
- max Working Pressure
- 7 bar
Comments (0)
No customer reviews for the moment.
UF19 PSU Membrane module
Membrane: PVDF (membrane layer inside the support tube - "in-out filtration")
Channels: 19 membranes tubes with 12,5mm ID each
Support material: PSU housing with epoxy resin (FDA grade)
Feed Connection: 3" tri-clamp each end
Lenght: 3048 mm
⇓ Please ask for current prices and delivery times!
