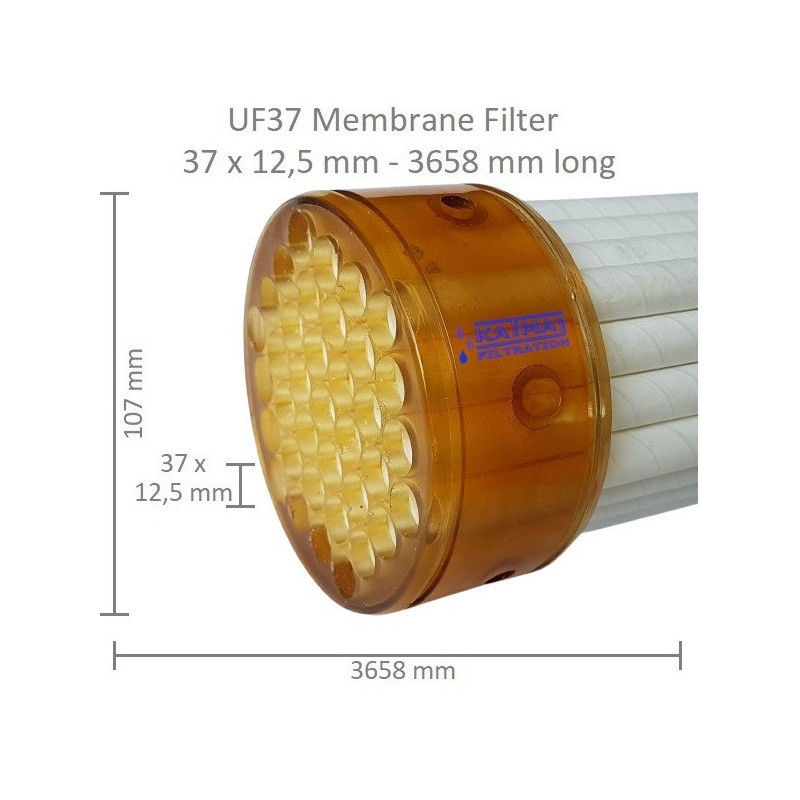

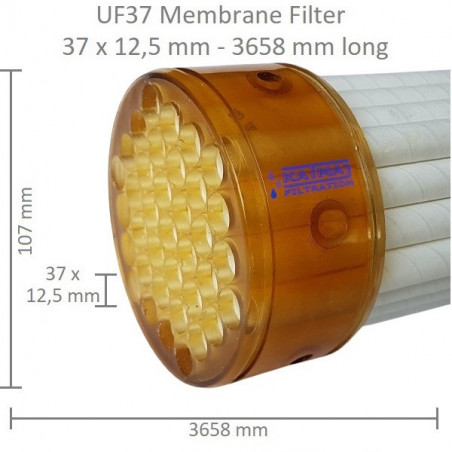

UF37 Core PVDF, 37x12,5mm, 3658mm
UF37 Membrane element - fits in KATMAJ Filtration UF37 housing or other housings with similar inner dimensions
Membrane: PVDF 20 kDa / 100 kDa / 200 kDa / 450 kDa / 200 nm (0,2µm)
(membrane layer inside the support tube - "in-out filtration")
Channels: 37 membranes tubes with 12,5mm ID each
Support material: PET tubes, PSU head shell with epoxy resin (FDA grade)
Core Size OD: 107mm with 6 screw holes on each end
Lenght: 3658 mm
⇓ Please ask for current prices and delivery times!
UF37 Membrane element - fits in KATMAJ UF37 housing system or other housings with same dimensions (OD 107mm, 6 screws, 3658mm lenght)
FPS20/10/S, FPS10/10/S PCI Membranes membrane filter core A37, FPS20/12/S and FPS10/12/S Bucher Unipektin apple juice clarification membrane filters also from Koch Kovalus Membrane Systems 0715310 and 0715370 like Koch Super-Cor XL PLUS 4312-HFM-180 and SUPER-COR® XL PLUS 4312-HFM-513 also C65-10 Memos Membrane Module Systems Memcross C65 VFU-100 VFU-250 C80 C100 CUT Membrane GmbH 3710 3712 T-CUT Core UF 200-125 PVDF 107-3658 or T-CUT Core UF 200-125 PVDF 107-3050 article no 760815 760814 760816
Data sheet
- Filtration Spectrum
- UF - Ultrafiltration
- Membrane Material
- PVDF
- Support Material
- PET - Polyethylene terephthalate
- Channels per Element
- 37
- Channel ID in Millimeter
- 12,5 (≈½")
- Membrane Area in m²
- 5,1
- Length in Millimeter
- 3658
- Housing Design
- UF37 - 4" tri-clamp
- Element OD in Millimeter
- 107
- Feed Flow @ 3m/s
- 49 m³/h
- max Working Pressure
- 7 bar
